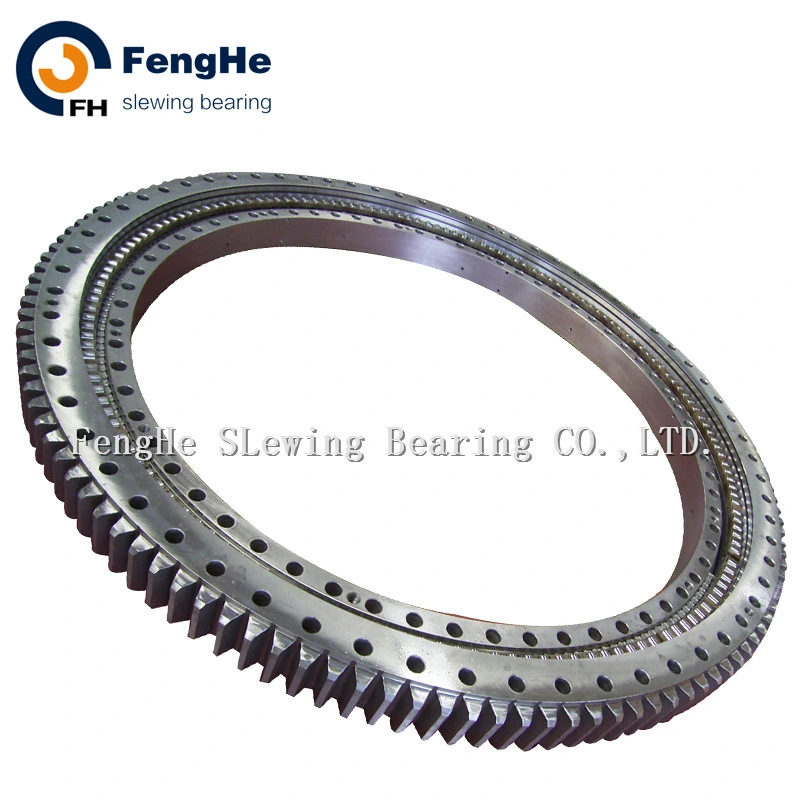

Slewing Bearing Used on Grader Slewing Ring Bearing Gear

17 years producing experience, strict quality control can be the industry's best solution guarantee.
China leading supplier for slewing bearing,the products have through ISO 9001,CAPE certifiaction,have more than 50 product patents.
Excellence in Quality and Precision Performance are constant hallmarks of all FENGHE products. Dialogue with the customer and a flexibility of approach combine with responsive design and development innovations to ensure superior delivery.

R&D/Maintenance

Engineers in Fenghe slewing bearing have an experience in turntable bearing over 17 years, they developed the R&D team and testing lab, continuous to making it extra stable and precision during the operation, Fenghe brand provide the best solution according to each customer with tailored products with many thousands of attempting.

Test

Life test

Application test

Environmental impacting test

Torque test

Vibration test

Measurement, inspection and analysis

Coordinate measuring machine (CMM)

Magnetic particle flaw detector (MT)

Ultrasonic detector (UT)

Scanning electron microscope (SEM)

HDR digital microscope

Rockwell hardness

Product types

Slewing Bearing	Ring Gear	Slewing Drive	Forging Blank

Pinion	Pinion	Double row slewing ring with external combine internal gear	Slewing bearing with special structure

Examples of use
Fenghe slewing bearings can even be used in the most demanding scopes of application. Slewing Bearing Used on Grader Slewing Ring Bearing Gear

We are committed to providing various standard and non-standard slewing bearing solutions for the machinery industry. If you have more questions forslewing rings and table bearings assembling, our in house engineers will pay attention to this parts and provide solutions to you.

Fenghe slewing bearings are widely applicationto the machinery industry and provide excellent precision for smoothly running. We do a lot of job in reducing weight, creating space, reducing friction and extending durable life. Fenghe offers a variety of raw materials, internal assembling, grease and corrosion resistance options. Fenghe offers the widest range of slewing bearings with P.C.D of 120mm to 5500mm.

Fenghe slewing ring is suitable for all kinds of harsh environments. Our technical research and development personnel focus on sealing protection during the slewing bearing operation, which effectively guarantees the internal lubrication of the slewing ring and prolongs the durable life.

NO.	Internal Gear DL mm	Dimensions			Mounting dimensions						Structural dimensions					Gear data					Gear circumferential force		weig ht kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	mm	dm mm	L mm	n1 mm	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norma lizing Z 104N	Quen ching T 104N
1	013.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	50	0	5	190	40	2.9	4.4
2	013.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	50	0	5	235	49	2.9	4.4
3	013.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	50	0	6	276	48	3.5	5.3
4	013.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	50	0	6	324	56	3.5	5.3
5	013.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	1	5	367	74	3.7	5.2	85
	014.30.500																	6	368	62	4.5	6.2
5'	013.25.500	602	398	80	566	434	20	18	M16	32	4	501	499	70	10	60	1	5	367	74	3.7	5.2	85
	014.25.500																	6	368	62	4.5	6.2
6	013.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	1	5	427	86	3.7	5.2	95
	014.30.560																	6	428	72	4.5	6.2
6'	013.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	60	1	5	427	86	3.7	5.2	95
	014.25.560																	6	428	72	4.5	6.2
7	013.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	1	6	494	83	4.5	6.2	110
	014.30.630																	8	491	62	6	8.3
7'	013.25.630	732	528	80	696	564	24	18	M16	32	4	631	629	70	10	60	1	6	494	83	4.5	6.2	110
	014.25.630																	8	491	62	6	8.2
8	013.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	1	6	572	96	4.5	6.2	120
	014.30.710																	8	571	72	6	8.3
8'	013.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	60	1	6	572	96	4.5	6.2	120
	014.25.710																	8	571	72	6	8.9
9	013.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	1	8	635	80	8	11.1	220
	014.40.800																	10	634	64	10	14
9'	013.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	1	8	635	80	8	11.1	220
	014.30.800																	10	634	64	10	14.1
10	013.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	1	8	739	93	8	11.1	240
	014.40.900																	10	734	74	10	14
10'	013.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	1	8	739	93	8	11.1	240
	014.30.900																	10	734	74	10	14
11	013.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	1	10	824	83	10	14	270
	014.40.1000																	12	821	69	12	16.7
11'	013.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	1	10	824	83	10	14	270
	014.30.1000																	12	821	69	12	16.7
12	013.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	1	10	944	95	10	14	300
	014.40.1120																	12	941	79	12	16.7
12'	013.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	1	10	944	95	10	14	300
	014.30.1120																	12	941	79	12	16.7
13	013.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	90	1	12	1049	88	13.5	18.8	420
	014.45.1250																	14	1042	75	15.8	21.9
13'	013.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	90	1	12	1049	88	13.5	18.8	420
	014.35.1250																	14	1042	75	15.8	21.9
14	013.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	90	1	12	1193	100	13.5	18.8	480
	014.45.1400																	14	1196	86	15.5	21.9
14'	013.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	90	1	12	1193	100	13.5	18.8	480
	014.35.1400																	14	1196	86	15.8	21.9
15	013.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	90	1	14	1392	100	15.8	21.9	550
	014.45.1600																	16	1382	87	18.1	25
15'	013.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	90	1	14	1392	100	15.8	21.9	55, 0
	014.35.1600											16						1382	87	18	25

Slewing ring for motor grader slewing ring gear
